Baker's Best - Donut Fryers

<< Back to All Donut Equipment

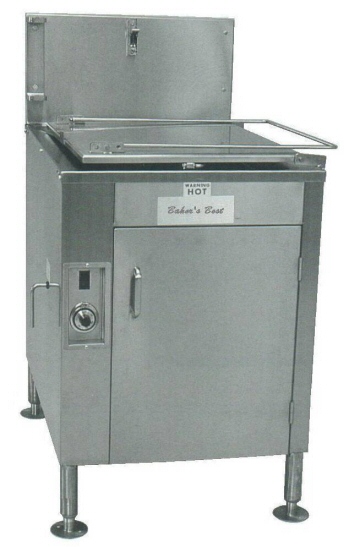

Electric Fryers
	-- Heavy Duty Fryer -- Compact Design -- Maximum Production in Minimum Space -- Stainless Steel Construction -- 12" High Backsplash -- Heavy Duty Mounting Bracket -- Ready to Accept Any Donut Dropper -- Exterior Drain Valve Control, and -- Bolt Down Legs

Model	Dimensions	Electrical Requirements	Frying Area Oil Capacity	Production Output	Weight
BB20-E (20 x 20)	26"w x 28"d x 46"h Tray open 47" wide	208V/1-PH/36Amp 208V/3-PH/21Amp	20" x 20" 80 lbs	60-75 doz/hr 90 sec fry time	200 lbs
BB26-E (18 x 26)	24"w x 34"d x 46"h Tray open 43" wide	208V/1-PH/36Amp 208V/3-PH/21Amp	18" x 26" 85 lbs	65-80 doz/hr 90 sec fry time	200 lbs
BB24-E (24 x 24)	30"w x 32"d x 46"h Tray open 55" wide	208V/1-PH/73Amp 208V/3-PH/42Amp	24" x 24" 100 lbs	80-100 doz/hr 90 sec fry time	250 lbs
BB34-E (24 x 34)	40"w x 32"d x 46"h Tray open 74" wide	208V/1-PH/73Amp 208V/3-PH/42Amp	24" x 34" 195 lbs	130-150 doz/hr 90 sec fry time	320 lbs

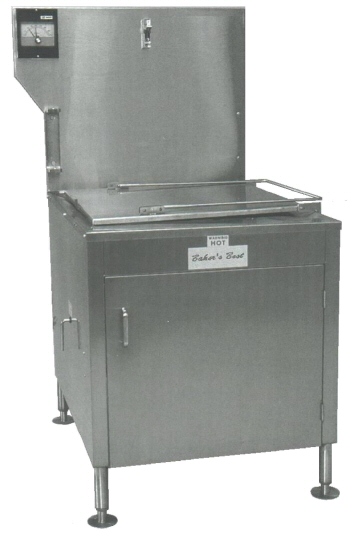

Gas Fryers - Standing Pilot

-- Stainless Steel Tube Fired Kettle
-- Stainless Steel Cabinet & Door
-- Stainless Steel Full Height Backsplash
-- Stainless Steel Adjustable Drain Tray/Cover
-- Exterior Drain Valve Control
-- Donut Cutter Mounting Bracket
-- Magnetic Millivolt Gas Valve
-- Safety High Limit Cut Out
-- Standing Pilot Ignition
-- No Electrical Power Needed
-- Available in Propane

Model	Dimensions	BTU/HR Gas Connection	Frying Area Oil Capacity	Production Output	Weight
BB20-G (20 x 20)	26"w x 28"d x 46"h Tray open 47" wide	55,000 BTU/HR 1/2" NPT	20" x 20" 80 lbs	60-75 doz/hr 90 sec fry time	300 lbs
BB26-G (18 x 26)	24"w x 34"d x 46"h Tray open 43" wide	55,000 BTU/HR 1/2" NPT	18" x 26" 85 lbs	65-80 doz/hr 90 sec fry time	300 lbs
BB24-G (24 x 24)	30"w x 32"d x 46"h Tray open 55" wide	80,000 BTU/HR 1/2" NPT	24" x 24" 100 lbs	80-100 doz/hr 90 sec fry time	325 lbs
BB34-G (24 x 34)	40"w x 32"d x 46"h Tray open 74" wide	120,000 BTU/HR 1/2" NPT	24" x 34" 195 lbs	130-150 doz/hr 90 sec fry time	400 lbs
